AISI 4151H Forging Drill String Components Replaceable Sleeve Stabilizer

Ask Lasest Price
Brand Name :
Model Number :	Replaceable sleeve stabilizer
Certification :	API 7-1
Price :	USD600-3000/pc
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	300 pcs per month
Delivery Time :	20-30 days

Add to Cart

Product Details
Company Profile

AISI 4151H Forging Drill String Components Replaceable Sleeve Stabilizer

API 7-1 AISI 4151H Forging Drilling Tools Replaceable Sleeve Stabilizer

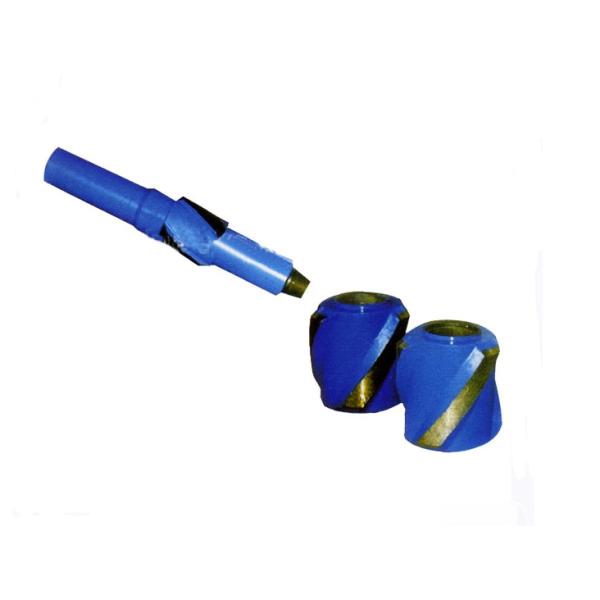

The replaceable sleeve stabilizer are available with two-piece and three-piece construction.The three-piece construction stabilizer is made of a body and a centralizing body(refer to sleeve replaceable).The advantage is that the sleeve can be changed quickly and easily after sleeve hardfacing is worn-out.This kind of stabilizer is especially suitable for working in directional well.

When ordering or requesting quotation, if size other than below specifications, please specify clearly! Please feel free to contact us for more details and more products.

Technical parameters for 2-piece replaceable sleeve stabilizer:

Bit Dia. (in)	Drill collar dia.	Stabilize sleeve		The body							Threads code for two ends (in)
		Length	Work O.D.	Upset end Dia.	upset end length	Fishing neck length	ID	Make-up Torque (KN.m)	Overall length L		Drill string type		Near bit type
									Near bit Type	Drill String Type	Top	Down	Top	Down
8 1/2	6 1/2	480	214	190	200	600	71	6.95--7.25	1900	1900	4 1/2IF	4 1/2IF	4 1/2IF	4 1/2IF
8 1/4		470	210
8		472	203
7 3/4		455	197
12 1/4	8	555	310	238			76	19.7--11	2000	2000	6 5/8REG	6 5/8REG	6 5/8REG	6 5/8REG
12		550	305
11 1/2		540	292
11		530	279
17 1/2	9	682	444	279				13.8/5--- 16.55			7 5/8REG	7 5/8REG	7 5/8REG	7 5/8REG
17		676	432
16 1/2		670	420
16		664	407
